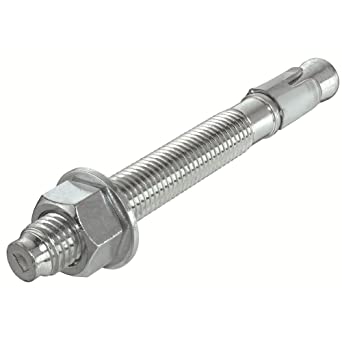

Carbon & Alloy Steel Anchor Fasteners

Carbon & Alloy Steel Anchor Fasteners are heavy-duty structural components designed to provide a secure connection between structural elements and concrete or masonry foundations. These fasteners, including L-type bolts, J-type bolts, and mechanical expansion anchors, are critical for transferring heavy tension and shear loads into base materials. Zeron Fastners manufactures these anchors using high-grade carbon steel for standard applications and alloy steel (such as ASTM F1554 Grade 105 or ASTM A193 B7) for high-load and extreme environments. Primarily used in the construction of bridges, industrial plants, and skyscraper foundations, these fasteners are available with specialized coatings like Hot-Dip Galvanizing (HDG) and Zinc plating to ensure long-term stability and corrosion resistance.

Related Products

Carbon & Alloy Steel Anchor Fasteners

Carbon & Alloy Steel Anchor Fastener Specifications

Feature Details
Size Range M6 to M100 (1/4" to 4")
Length Range Up to 5000mm (5 Meters)
Standard Grades ASTM F1554 (Gr. 36, 55, 105), ASTM A307, A193 B7
Thread Type Metric, UNC, UNF, BSW
Finish HDG, Zinc Plated, PTFE, Black Oxide

Mechanical Properties by Property Class (Carbon/Alloy)

Property Class Material Tensile Strength (min)
Class 4.6 Low/Medium Carbon Steel 400 MPa
Class 8.8 Medium Carbon (Quenched & Tempered) 800 MPa
Class 10.9 Alloy Steel (Quenched & Tempered) 1040 MPa
Class 12.9 Alloy Steel (Quenched & Tempered) 1220 MPa
