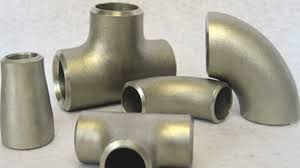

Incoloy 800 Tees (Equal & Unequal)
Incoloy 800 Tees are critical fittings used to connect three pipe sections, allowing for the branching of a pipeline. Available in both equal (all three openings are the same size) and unequal or reducing configurations, these tees are offered by Zeron Fasteners. Manufactured from Incoloy 800 (UNS N08800), the alloy is valued for its exceptional performance in applications that demand both high-temperature strength and excellent resistance to chloride stress-corrosion cracking. Its stability and resistance to oxidation make it indispensable in industries like chemical processing, petrochemical refining, and industrial furnaces, ensuring reliable flow diversion under harsh operational conditions.
Related Products
Chemical Composition (Incoloy 800 Tees)
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 30.0 to 35.0 |
| Chromium (Cr) | 19.0 to 23.0 |
| Iron (Fe) | 39.5 min |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 1.50 max |
| Silicon (Si) | 1.00 max |
| Aluminum (Al) | 0.15 to 0.60 |
| Titanium (Ti) | 0.15 to 0.60 |
| Sulfur (S) | 0.015 max |
| Copper (Cu) | 0.75 max |
Mechanical Properties (Incoloy 800 Tees)
| Property | Value |
|---|---|
| Tensile Strength, min (MPa) | 520 |
| Yield Strength (0.2% Offset), min (MPa) | 205 |
| Elongation, min (%) | 30 |
| Hardness, max (Rockwell B) | 88 |
