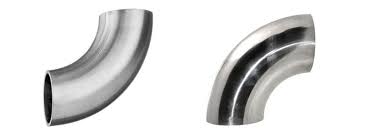

SS 347 Elbows (90° / 45° Long & Short Radius)
SS 347 Elbows are essential piping components used to change the direction of fluid flow, typically by **90°** or **45°**. These components are manufactured primarily through the forging process and subsequent specialized forming (like mandrelling) and machining. The use of SS 347 material, an austenitic stainless steel stabilized with **Niobium (Columbium)**, is critical for piping systems that operate at elevated temperatures (**425°C to 816°C**). The stabilization prevents the precipitation of chromium carbides at the grain boundaries during welding, thereby ensuring the elbow retains full resistance to **intergranular corrosion**. Zeron Fasteners supplies these high-quality elbows in various forms—including Long Radius (LR) and Short Radius (SR)—guaranteeing the structural integrity and longevity of critical lines in petrochemical, power generation, and chemical processing plants.
Related Products
SS 347 Elbows Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 17.00 – 19.00 |
| Nickel (Ni) | 9.00 – 13.00 |
| Niobium (Nb) + Tantalum (Ta) | 10 x C – 1.00 |
Note: The combined Niobium and Tantalum content must be ten times the Carbon content minimum, up to a maximum of 1.00%.
SS 347 Elbows Mechanical Properties
| Property | Value (Typical, ASTM A403 WP347) |
|---|---|
| Tensile Strength | 515 MPa |
| Yield Strength (0.2% Offset) | 205 MPa |
| Elongation | 30% |
| Hardness (Brinell, HB) | 217 max |
| Design Temperature | Up to 870°C |
